LUGGAGE COMPARTMENT ROOM LIGHT
A
LIGHTING (INT) LUGGAGE COMPARTMENT ROOM LIGHT REMOVAL
CAUTION / NOTICE / HINT

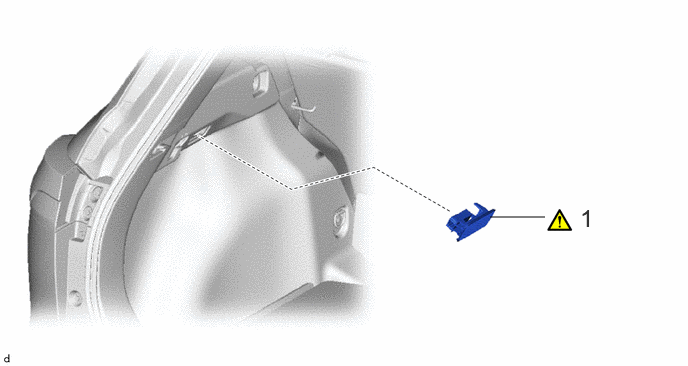

COMPONENTS (REMOVAL)
5.104,2.26 5.677,2.26
false
6.042,2.125 6.323,2.479
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330B | ( 202201,999999,_58,_112288,_0501073,RM100000001Z4UB_01_0029,)
|
- | - |
PROCEDURE
81330B
1.REMOVE LUGGAGE COMPARTMENT LIGHT ASSEMBLY
a.
0.396,0.031 1.125,0.344
0.729,0.313
18
false
i
4.24,0.073 4.969,0.385
0.729,0.313
18
false
ii
i.
Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the luggage compartment light assembly.
ii.
Disconnect the connector.
