Vehicle Interior
_112288
LIGHTING (INT)
_0501072
ROOM LIGHT
A
LIGHTING (INT) ROOM LIGHT REMOVAL
CAUTION / NOTICE / HINT

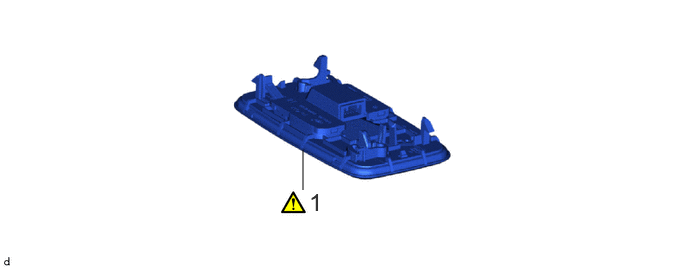

COMPONENTS (REMOVAL)
3.156,1.979 3.156,1.563
false
3.219,1.958 3.5,2.313
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 1 ROOM LIGHT ASSEMBLY | 81240 | ( 202201,999999,_58,_112288,_0501072,RM100000001Z4U7_01_0008,)
|
- | - |
PROCEDURE
81240
1.REMOVE NO. 1 ROOM LIGHT ASSEMBLY
a.
2.094,0.677 2.51,0.5
true
4.656,0.573 4.99,0.573
true
5.792,1.063 5.958,1.375
true
0.375,0.042 0.656,0.396
0.281,0.354
18
false
i
3.948,0.042 4.5,0.396
0.552,0.354
18
false
ii
4.125,2.031 4.667,2.323
0.542,0.292
18
true
iv, v
2.531,0.375 2.75,0.573
0.219,0.198
10
true
*a
0.354,2.052 1.188,2.406
0.833,0.354
18
false
iii
4.458,0.49 4.677,0.688
0.219,0.198
10
true
*b
5.875,1.333 6.094,1.531
0.219,0.198
10
true
*b
| *a | Room Light Lens | *b | Inner Cover |
i.
Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the room light lens.
ii.
Using a screwdriver with its tip wrapped with protective tape, disengage the claws and guides to remove the 2 inner covers.
iii.
Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the No. 1 room light assembly.
iv.
Disconnect the connector.
v.
Disengage the guide to disconnect the wire harness.
