LIGHTING (INT)  PERSONAL LIGHT  INSPECTION

1.552,0.406 1.885,0.656 0.333,0.25 2.219,0.719 1.885,1.219 true 2.5,0.927 2,1.219 true 1.885,1.427 2.281,1.833 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 2.552,0.76 3.167,0.958 0.615,0.198 10 false RLMP 2.25,0.51 2.865,0.708 0.615,0.198 10 false DOOR 2.313,1.833 2.771,2.031 0.458,0.198 10 false GND 1.635,0.427 1.948,0.625 0.313,0.198 10 false T6

*a	Component without harness connected (Map Light Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
T6-3 (RLMP) - T6-4 (DOOR)	Door linked switch on	Below 1 Ω
T6-3 (RLMP) - T6-14 (GND)	Dome light switch on	Below 1 Ω

If the result is not as specified, replace the map light assembly.

1.552,0.406 1.885,0.656 0.333,0.25 1.094,0.677 1.646,1.219 true 2.219,0.719 1.885,1.219 true 1.885,1.427 2.25,1.813 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 0.802,0.542 1.26,0.74 0.458,0.198 10 false +B1 2.271,0.542 2.885,0.74 0.615,0.198 10 false DOOR 2.292,1.823 2.75,2.021 0.458,0.198 10 false GND 1.635,0.427 1.948,0.625 0.313,0.198 10 false T6

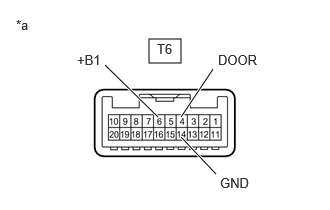

*a	Component without harness connected (Map Light Assembly)

Apply auxiliary battery voltage to the map light assembly and check that the lights illuminate.

OK:

Tester Connection	Condition	Specified Condition
T6-6 (+B1) - Auxiliary battery positive (+) T6-14 (GND) - Auxiliary battery negative (-)	Map light switch LH on	Map light LH illuminates
T6-6 (+B1) - Auxiliary battery positive (+) T6-14 (GND) - Auxiliary battery negative (-)	Map light switch RH on	Map light RH illuminates
T6-6 (+B1) - Auxiliary battery positive (+) T6-14 (GND) - Auxiliary battery negative (-)	Map light switches off and dome light switch on	Map light LH and RH illuminate
T6-6 (+B1) - Auxiliary battery positive (+) T6-4 (DOOR) - Auxiliary battery negative (-)	Map light switches off and door linked switch on	Map light LH and RH illuminate

If the result is not as specified, replace the bulb or map light assembly.
