BACK-UP LIGHT BULB
A
MAINTENANCE BACK-UP LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT

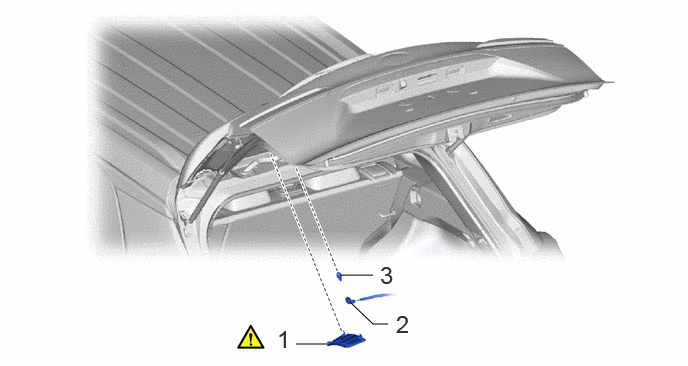

COMPONENTS (REMOVAL)
3.552,2.865 3.885,2.865
false
3.646,3.146 3.885,3.375
3.885,3.375 4.042,3.375
false
3.083,3.583 3.417,3.583
false
3.958,2.719 4.198,3
0.24,0.281
18
false
3
4.125,3.229 4.365,3.51
0.24,0.281
18
false
2
2.885,3.385 3.125,3.667
0.24,0.281
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR SERVICE HOLE COVER | - | ( 202201,999999,_V1,_104397,_0501052,RM100000001Z4TT_01_0075,)
|
- | - |
| 2 | BACK UP LIGHT SOCKET | - | - | - | - |
| 3 | BACK UP LIGHT BULB | 81550N | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE

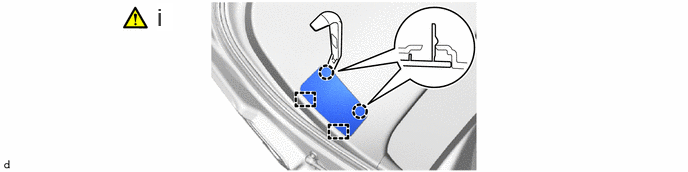

1.REMOVE BACK DOOR SERVICE HOLE COVER
a.
1.635,0.031 1.802,0.323
0.167,0.292
18
true
i
i.
Using a moulding remover A, disengage the claws and guides to remove the back door service hole cover.

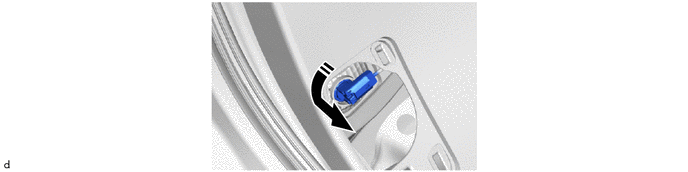

2.REMOVE BACK UP LIGHT SOCKET
a.
0,0 0,0
false
|
Remove in this Direction | - | - |
81550N
3.REMOVE BACK UP LIGHT BULB
a.
