REAR TURN SIGNAL LIGHT BULB
A
MAINTENANCE REAR TURN SIGNAL LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT

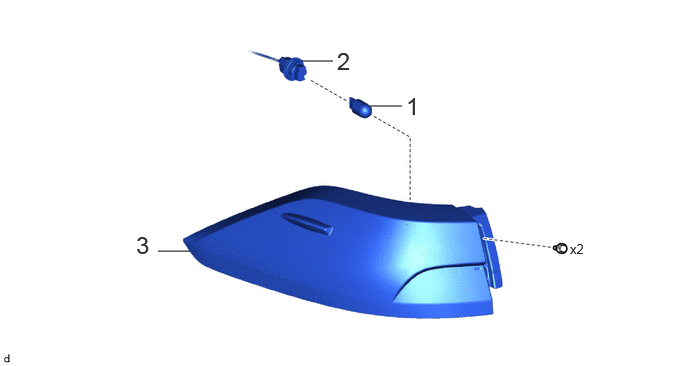

COMPONENTS (INSTALLATION)
1.646,2.615 1.979,2.615
false
3.854,1.104 4.188,1.104
false
3.135,0.635 3.469,0.635
false
1.417,2.406 1.698,2.76
0.281,0.354
18
false
3
4.229,0.958 4.51,1.313
0.281,0.354
18
false
1
3.51,0.49 3.792,0.844
0.281,0.354
18
false
2
5.938,2.51 6.188,2.708
0.25,0.198
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR TURN SIGNAL LIGHT BULB | 81550L | - | - | - |
| 2 | REAR TURN SIGNAL LIGHT SOCKET | - | - | - | - |
| 3 | REAR COMBINATION LIGHT ASSEMBLY | 81560 | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81550L
1.INSTALL REAR TURN SIGNAL LIGHT BULB
2.INSTALL REAR TURN SIGNAL LIGHT SOCKET
81560
3.INSTALL REAR COMBINATION LIGHT ASSEMBLY
