MAINTENANCE
_0501050
FRONT TURN SIGNAL LIGHT BULB
A
MAINTENANCE FRONT TURN SIGNAL LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT

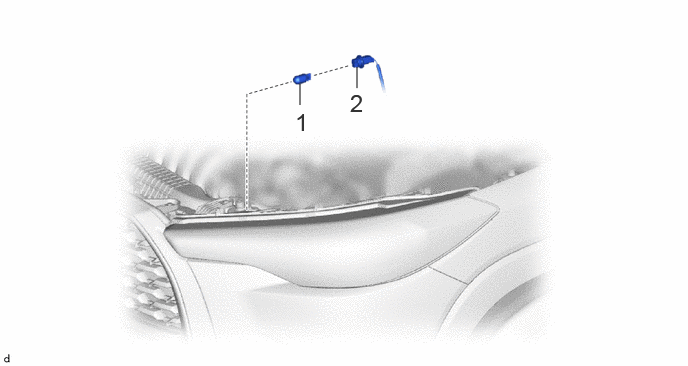

COMPONENTS (INSTALLATION)
3.125,0.875 3.125,1.094
false
3.719,0.698 3.719,0.917
false
3.646,0.927 3.865,1.25
0.219,0.323
18
false
2
3.073,1.125 3.292,1.448
0.219,0.323
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT TURN SIGNAL LIGHT BULB | 81510D | - | - | - |
| 2 | FRONT TURN SIGNAL LIGHT SOCKET | 81515B | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81510D
1.INSTALL FRONT TURN SIGNAL LIGHT BULB
81515B
2.INSTALL FRONT TURN SIGNAL LIGHT SOCKET
