FRONT TURN SIGNAL LIGHT BULB
A
MAINTENANCE FRONT TURN SIGNAL LIGHT BULB REMOVAL
CAUTION / NOTICE / HINT

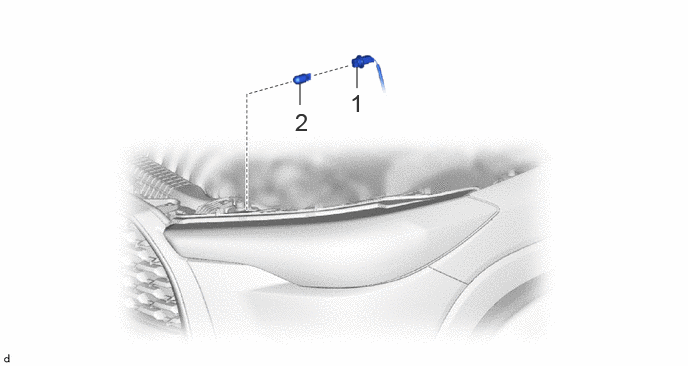

COMPONENTS (REMOVAL)
3.125,0.875 3.125,1.094
false
3.719,0.698 3.719,0.917
false
3.646,0.927 3.865,1.25
0.219,0.323
18
false
1
3.073,1.125 3.292,1.448
0.219,0.323
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT TURN SIGNAL LIGHT SOCKET | 81515B | - | - | - |
| 2 | FRONT TURN SIGNAL LIGHT BULB | 81510D | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81515B
1.REMOVE FRONT TURN SIGNAL LIGHT SOCKET

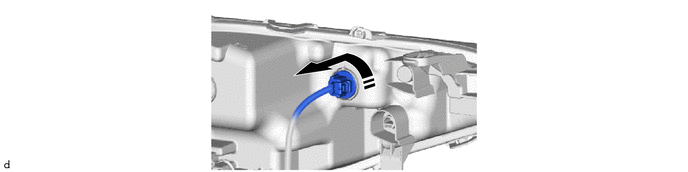

a.
0,0 0,0
false
|
Remove in this Direction | - | - |
81510D
2.REMOVE FRONT TURN SIGNAL LIGHT BULB
a.
