HEADLIGHT BULB
A
MAINTENANCE HEADLIGHT BULB REMOVAL
CAUTION / NOTICE / HINT

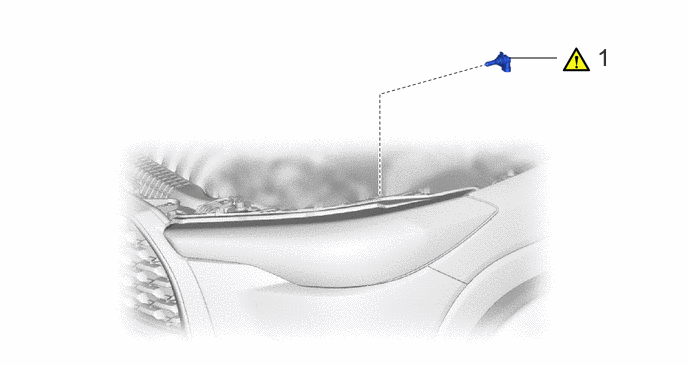

COMPONENTS (REMOVAL)
5.302,0.604 5.802,0.604
false
6.219,0.448 6.5,0.802
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 1 HEADLIGHT BULB | 81110B | ( 202201,999999,_V1,_104397,_0501048,RM100000001Z4TL_01_0001,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81110B
1.REMOVE NO. 1 HEADLIGHT BULB
a.
0.271,0.083 0.552,0.438
0.281,0.354
18
false
i
3.833,0.073 4.115,0.427
0.281,0.354
18
false
ii
|
Remove in this Direction | - | - |
i.
Disconnect the connector.
ii.
Remove the No. 1 headlight bulb from the headlight unit as shown in the illustration.
- NOTICE:
-
Do not touch the bulb glass with your fingers.
