STEERING COLUMN  STEERING COLUMN ASSEMBLY  INSPECTION

Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt to the steering main shaft.

NOTICE:

·

Do not apply excessive torque to the steering wheel assembly set bolt by using a tool such as an impact wrench.

·

The steering wheel assembly set bolt is used for turning the steering main shaft during inspection of the steering main shaft rotating torque.

·

Remove the steering wheel assembly set bolt after performing this inspection.

2.094,1.156 2.313,1.156 true 0.531,1.313 0.865,1.313 true 0.698,1.323 0.698,1.688 0.698,1.688 0.875,1.688 true 0.708,1.5 0.865,1.5 true 0.344,1.198 0.656,1.354 0.313,0.156 10 false *a 2.354,1.052 2.667,1.208 0.313,0.156 10 false *b

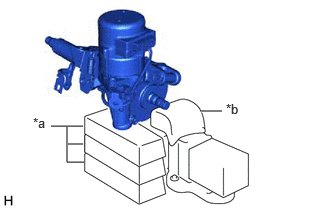

*a	Wooden Block
*b	Cloth

Secure the steering column assembly in a vise using aluminum plates, cloths and wooden blocks.

NOTICE:

·

Do not overtighten the vise, as the steering column assembly may become deformed.

·

Support the steering column assembly with wooden blocks or similar items to ensure that it does not fall.

0,0 0,0 false

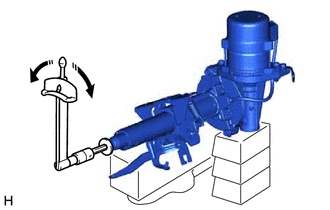

Turn

Using a torque wrench, turn the steering main shaft at a constant rate of approximately 1 revolution every 4 seconds and measure the preload.

Preload:

1.1 to 2.3 N*m (12 to 23 kgf*cm, 10 to 20 in.*lbf)

Check that the 2 bushings are securely installed to the steering column assembly.
