AXLE AND DIFFERENTIAL REAR AXLE HUB REMOVAL

CAUTION / NOTICE / HINT

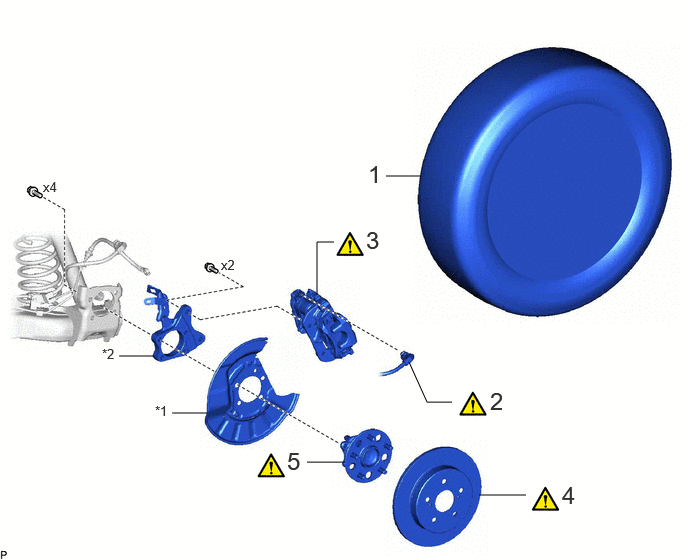

COMPONENTS (REMOVAL)

4.021,1.833 4.385,1.833 false 4.26,3.771 4.448,4.188 4.448,4.188 4.708,4.188 false 3.302,3.073 3.302,2.521 3.302,2.521 3.479,2.521 false 4.99,5.156 5.479,5.156 false 3.198,4.813 3.594,4.813 false 1.24,3.708 1.604,3.708 false 1.792,4.302 2.156,4.302 false 3.833,1.667 4.115,2.021 0.281,0.354 18 false 1 5.104,4.031 5.385,4.385 0.281,0.354 18 false 2 3.813,2.354 4.094,2.708 0.281,0.354 18 false 3 5.854,5.01 6.135,5.365 0.281,0.354 18 false 4 2.99,4.656 3.271,5.01 0.281,0.354 18 false 5 0.448,1.865 0.76,2.063 0.313,0.198 10 false x4 2.302,2.677 2.615,2.875 0.313,0.198 10 false x2 1.615,4.198 1.927,4.396 0.313,0.198 10 false *1 1.063,3.604 1.375,3.802 0.313,0.198 10 false *2

Procedure		Part Name Code
1	REAR WHEEL	-	-	-	-
2	NO. 2 PARKING BRAKE WIRE ASSEMBLY	890C0A	(202201,999999,_52,_112268,_0500955,RM100000001Z4HS_02_0020,)	-	-
3	REAR DISC BRAKE CALIPER ASSEMBLY	-	(202201,999999,_52,_112268,_0500955,RM100000001Z4HS_02_0019,)	-	-
4	REAR DISC	42431	(202201,999999,_52,_112268,_0500955,RM100000001Z4HS_02_0013,)	-	-
5	REAR AXLE HUB AND BEARING ASSEMBLY	42450B	(202201,999999,_52,_112268,_0500955,RM100000001Z4HS_02_0006,)	-	-

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY

REAR CALIPER SUPPORT BRACKET

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202201,999999,_V1,_104397,_0503374,RM100000001ZE9H,

Hide Display 890C0A 2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here(

202201,999999,_52,_112268,_0500954,RM100000001Z4HP_01_0039,)

Hide Display 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here(

202201,999999,_52,_112268,_0500954,RM100000001Z4HP_01_0040,)

Hide Display 42431 4.REMOVE REAR DISC

Click here(

202201,202307,_54,_115207,_0510708,RM1000000020AHG_04_0025,202307,999999,_54,_115207,_0510708,RM100000002BUWS_04_0025,)

Hide Display 42450B 5.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

1.927,0.052 2.208,0.406 0.281,0.354 18 false i 0.406,2.021 0.688,2.375 0.281,0.354 18 false ii

Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear axle hub and bearing assembly.

NOTICE:: ·

Be careful not to damage the rear axle hub and bearing assembly or connector cover.

·

Remove any dirt or foreign matter on and around the connector before performing this step.

·

Do not allow water, oil or dirt to enter the connector.

ii.

Remove the 4 bolts, rear axle hub and bearing assembly, rear disc brake dust cover sub-assembly and rear caliper support bracket from the rear axle beam assembly.

NOTICE:: ·

Do not drop the rear axle hub and bearing assembly and rear caliper support bracket.

·

Use wire or an equivalent tool to keep the rear caliper support bracket from hanging by the rear flexible hose and brake tube.
