AXLE AND DIFFERENTIAL  REAR AXLE HUB BOLT  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 890C0A 2.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.

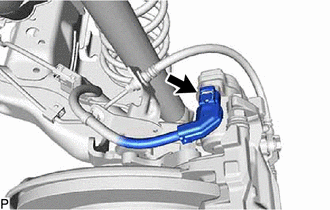

C463505

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

NOTICE:
·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.




Hide 3.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

a.

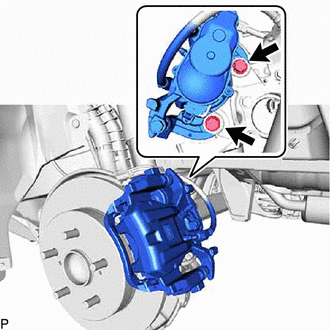

C463506

Remove the 2 bolts and separate the rear disc brake caliper assembly from the rear caliper support bracket.

NOTICE:

Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose.



Hide 42312E 5.REMOVE REAR AXLE HUB BOLT

a.

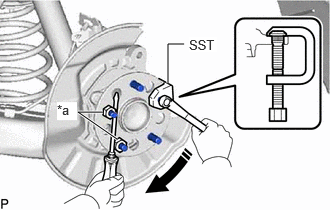

C463507C02
1.917,0.458 1.75,0.458 1.75,0.458 1.75,0.865 true 1.219,1.448 0.813,1.167 0.813,1.167 1.073,1.167 true 1.969,0.385 2.26,0.542 0.292,0.156 10 true SST 0.594,1.063 0.802,1.25 0.208,0.188 10 true *a
*a Service Nut
V113147

Turn


Temporarily install 2 service nuts to the rear axle hub bolts as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


NOTICE:

Install the service nuts to prevent damage to the rear axle hub bolts.



b.

Using SST and a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, remove the rear axle hub bolt.

SST
09611-12010

NOTICE:

Do not damage the threads of the rear axle hub bolts.



Hide 42312E 6.INSTALL REAR AXLE HUB BOLT

a.
C463508C02
1.25,1.448 0.74,1.167 0.74,1.167 1.063,1.167 true 2.49,0.813 2.49,1 2.49,1 2.625,1 true 2.667,0.188 2.813,0.188 2.813,0.188 2.813,0.302 true 0.521,1.073 0.729,1.24 0.208,0.167 10 true *a 2.5,0.125 2.698,0.281 0.198,0.156 10 true *b 2.656,0.917 2.865,1.073 0.208,0.156 10 true *a
*a Service Nut
*b Washer
V113147

Turn


Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly.


b.

Install a washer and service nut to the rear axle hub bolt as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


HINT:

Recommended washer thickness is 5 mm (0.197 in.) or more.



c.

Using a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, install the rear axle hub bolt by tightening the service nut.

NOTICE:
·

Install the service nuts to prevent damage to the rear axle hub bolts.

·

Do not damage the threads of the rear axle hub bolts.




d.

Remove the 3 service nuts and washer from the 3 rear axle hub bolts.


Hide 8.INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

a.

Install the rear disc brake caliper assembly to the rear caliper support bracket with the 2 bolts.

Torque:
107 N*m (1091 kgf*cm, 79 ft.*lbf)

NOTICE:
·

Do not twist the rear flexible hose when installing the rear disc brake caliper assembly.

·

Make sure that there is no foreign matter on the threads of the bolt.




Hide 890C0A 9.CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.

Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.

NOTICE:
·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
