RM38T0EC _52 Drivetrain _112268 AXLE AND DIFFERENTIAL _0500951 FRONT AXLE HUB BOLT A

AXLE AND DIFFERENTIAL  FRONT AXLE HUB BOLT  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 2.SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

a.
C438899

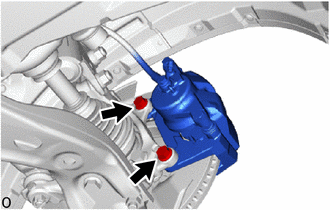

Remove the 2 bolts and separate the front disc brake caliper assembly from the steering knuckle.

NOTICE:

Use wire or an equivalent tool to keep the front disc brake caliper assembly from hanging by the front flexible hose.



Hide 43502D 4.REMOVE FRONT AXLE HUB BOLT

a.
C438009C01
2.406,0.938 3.104,0.938 3.104,0.938 3.104,1.344 true 2.635,1.094 3.094,1.094 true 2.229,0.396 1.958,0.396 1.958,0.396 1.958,1.052 true 3.042,1.375 3.354,1.573 0.313,0.198 10 false *a 2.26,0.302 2.583,0.469 0.323,0.167 10 true SST
*a Service Nut
V113147

Turn


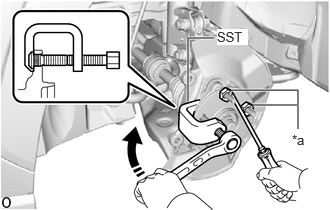

Temporarily install 2 service nuts to the front axle hub bolts as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


NOTICE:

Install the service nuts to prevent damage to the front axle hub bolts.



b.

Using SST and a screwdriver or an equivalent tool to hold the front axle hub sub-assembly, remove the front axle hub bolt.

SST
09611-12010

NOTICE:

Do not damage the threads of the front axle hub bolts.



Hide 43502D 5.INSTALL FRONT AXLE HUB BOLT

a.

Temporarily install a new front axle hub bolt to the front axle hub sub-assembly.


b.
C438010C01
0.844,0.5 1.448,0.271 true 0.646,1.573 0.646,0.823 true 1.49,0.167 1.677,0.344 0.188,0.177 10 true *a 0.583,1.604 0.896,1.802 0.313,0.198 10 true *b
*a Service Nut
*b Washer
V113147

Turn

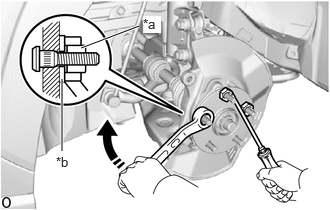

Install a washer and service nut to the front axle hub bolt as shown in the illustration.

Recommended Service Nut:

Thread diameter: 12.0 mm (0.472 in.)

Thread pitch: 1.5 mm (0.0591 in.)


HINT:

Recommended washer thickness is 5 mm (0.197 in.) or more.



c.

Using a screwdriver or an equivalent tool to hold the front axle hub sub-assembly, install the front axle hub bolt by tightening the service nut.

NOTICE:
·

Install the service nuts to prevent damage to the front axle hub bolts.

·

Do not damage the threads of the front axle hub bolts.




d.

Remove the 3 service nuts and washer from the 3 front axle hub bolts.


Hide 7.INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY

a.

Install the front disc brake caliper assembly to the steering knuckle with the 2 bolts.

Torque:
107 N*m (1091 kgf*cm, 79 ft.*lbf)

NOTICE:

Do not twist the front flexible hose when installing the front disc brake caliper assembly.
