HEATING / AIR CONDITIONING AIR CONDITIONING PRESSURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

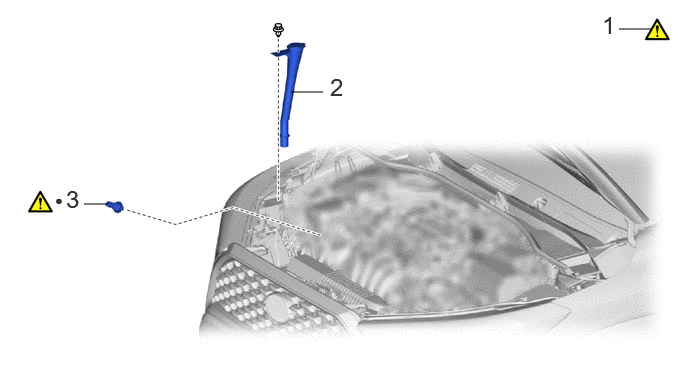

COMPONENTS (REMOVAL)

3.031,0.958 3.365,0.958 false 0.875,2.125 1.125,2.125 false 6.448,0.302 6.781,0.302 false 3.438,0.76 3.719,1.115 0.281,0.354 18 false 2 0.688,1.927 0.969,2.281 0.281,0.354 18 false 3 0.573,2 0.729,2.198 0.156,0.198 10 false ● 6.271,0.115 6.552,0.469 0.281,0.354 18 false 1

Procedure		Part Name Code
1	RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM	-	(202201,999999,_58,_104612,_0500018,RM100000001Z15F_01_0006,)	-	-
2	WASHER INLET	85319E	-	-	-
3	AIR CONDITIONER PRESSURE SENSOR	88719A	(202201,999999,_58,_104612,_0500018,RM100000001Z15F_01_0002,)	-	-

●

Non-reusable part

PROCEDURE

Hide Display 1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202201,202307,_58,_104612,_0500005,RM100000001Z14D_01_0001,202307,999999,_58,_104612,_0500005,RM100000002BK0U_01_0001,

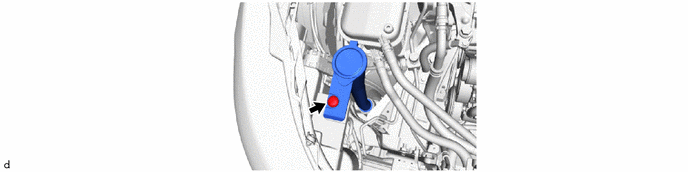

Hide Display 85319E 2.REMOVE WASHER INLET

Hide Display 88719A 3.REMOVE AIR CONDITIONER PRESSURE SENSOR

6.219,0.396 5.885,0.563 true 5.115,1.563 4.729,1.615 true 4.531,1.542 4.719,1.729 0.188,0.188 10 true *a 6.229,0.302 6.427,0.5 0.198,0.198 10 true *b 0.208,0.052 0.49,0.406 0.281,0.354 18 false i 3.906,0.021 4.188,0.375 0.281,0.354 18 false ii

Turn

Hold

Disconnect the connector.

ii.

Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
