RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0500016 FRONT EVAPORATOR TEMPERATURE SENSOR G

HEATING / AIR CONDITIONING  FRONT EVAPORATOR TEMPERATURE SENSOR  INSPECTION


PROCEDURE

Hide 88625 1.INSPECT NO. 1 COOLER THERMISTOR

a.

Check the resistance.

i.

Measure the resistance according to the value(s) in the table below.

E397185C08

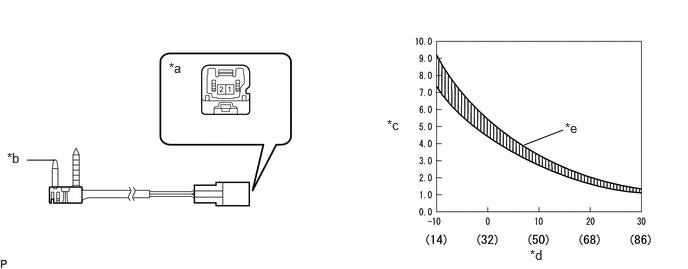

5.458,1.51 5.865,1.354 false 0.281,1.667 0.573,1.667 false 1.76,0.625 2.083,0.813 0.323,0.188 10 false *a 0.073,1.563 0.365,1.76 0.292,0.198 10 false *b 4.031,1.219 4.344,1.417 0.313,0.198 10 false *c 5.521,2.573 5.854,2.76 0.333,0.188 10 false *d 5.885,1.25 6.198,1.469 0.313,0.219 10 false *e
*a Component without harness connected
(No. 1 Cooler Thermistor) 		*b Sensing Portion
*c Resistance (kΩ) *d Temperature (°C (°F))
*e Allowable Range - -


Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 -10°C (14°F) 7.30 to 9.10 kΩ
1 - 2 -5°C (23°F) 5.65 to 6.95 kΩ
1 - 2 0°C (32°F) 4.40 to 5.35 kΩ
1 - 2 5°C (41°F) 3.40 to 4.15 kΩ
1 - 2 10°C (50°F) 2.70 to 3.25 kΩ
1 - 2 15°C (59°F) 2.14 to 2.58 kΩ
1 - 2 20°C (68°F) 1.71 to 2.05 kΩ
1 - 2 25°C (77°F) 1.38 to 1.64 kΩ
1 - 2 30°C (86°F) 1.11 to 1.32 kΩ


NOTICE:
·

Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.

·

When measuring, the sensor temperature must be the same as the ambient temperature.



HINT:

As the temperature increases, the resistance decreases (see the graph).


If the resistance is not as specified, replace the No. 1 cooler thermistor.
