HEATING / AIR CONDITIONING  BLOWER RESISTOR  INSPECTION

1.49,0.156 1.906,0.406 0.417,0.25 1.958,1.021 2.25,0.344 true 1.479,1.01 1.177,0.333 true 1.948,1.344 2.25,1.802 true 1.5,1.344 1.188,1.802 true 0.063,0 0.24,0.198 0.177,0.198 10 false *a 2.292,0.219 2.563,0.417 0.271,0.198 10 false E 0.948,0.229 1.219,0.427 0.271,0.198 10 false M2 1.073,1.833 1.25,2.021 0.177,0.188 10 false HI 2.24,1.833 2.51,2.052 0.271,0.219 10 false M1 1.573,0.208 2.188,0.406 0.615,0.198 10 false I144

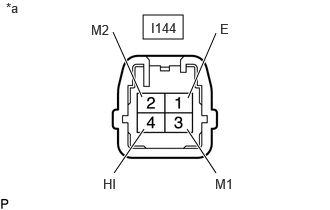

*a	Component without harness connected (Blower Resistor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I144-4 (HI) - I144-2 (M2)	Always	0.39 to 0.45 Ω
I144-4 (HI) - I144-3 (M1)	Always	1.32 to 1.52 Ω
I144-4 (HI) - I144-1 (E)	Always	2.08 to 2.40 Ω

If the result is not as specified, replace the blower resistor.
