FRONT BLOWER MOTOR
A
HEATING / AIR CONDITIONING FRONT BLOWER MOTOR INSTALLATION
CAUTION / NOTICE / HINT

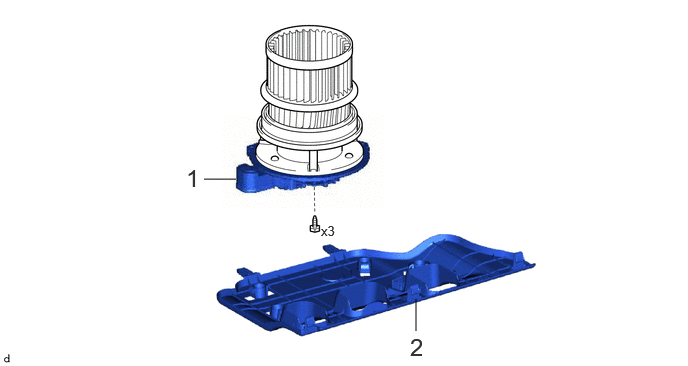

COMPONENTS (INSTALLATION)
2.125,1.865 2.458,1.865
false
4.333,3.115 4.333,3.448
false
4.271,3.469 4.646,3.76
0.375,0.292
18
false
2
1.938,1.708 2.313,2
0.375,0.292
18
false
1
3.344,2.323 3.656,2.521
0.313,0.198
10
false
x3
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | 87103B | - | - | - |
| 2 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
PROCEDURE
87103B
1.INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY
55607
2.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
