FRONT BLOWER MOTOR
A
HEATING / AIR CONDITIONING FRONT BLOWER MOTOR REMOVAL
CAUTION / NOTICE / HINT

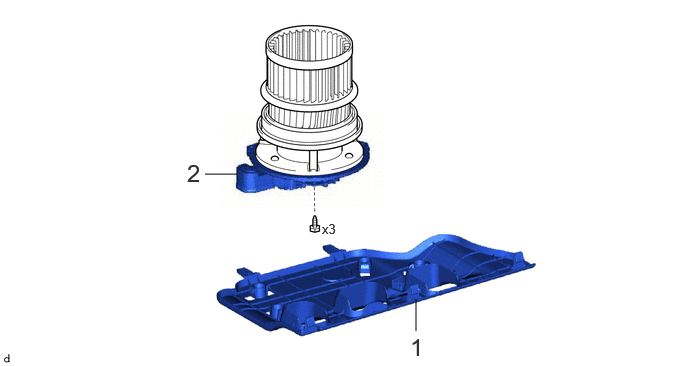

COMPONENTS (REMOVAL)
2.135,1.813 2.469,1.813
false
4.333,3.115 4.333,3.448
false
4.271,3.469 4.646,3.76
0.375,0.292
18
false
1
1.948,1.656 2.323,1.948
0.375,0.292
18
false
2
3.354,2.302 3.667,2.5
0.313,0.198
10
false
x3
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55607 | - | - | - |
| 2 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | 87103B | - | - | - |
PROCEDURE
55607
1.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
87103B

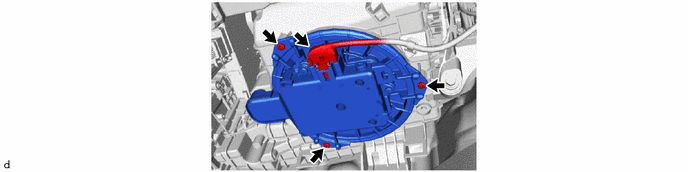

2.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY
a.
