PARK ASSIST / MONITORING  PANORAMIC VIEW MONITOR SWITCH  INSPECTION


PROCEDURE

Hide 84721B 1.INSPECT PANORAMIC VIEW MONITOR SWITCH

a.

Check that the resistance.

i.

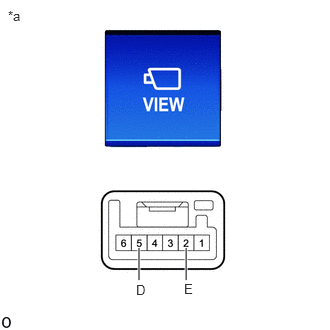

B525304C02
1.448,2.917 1.448,2.583 true 1.938,2.917 1.938,2.583 true 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a 1.417,2.938 1.573,3.135 0.156,0.198 10 false D 1.917,2.927 2.073,3.125 0.156,0.198 10 false E
*a Component without harness connected
(Panoramic View Monitor Switch)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
5 (D) - 2 (E) Panoramic view monitor switch ON (Not protruding) Below 1 Ω
5 (D) - 2 (E) Panoramic view monitor switch off (Protruding) 10 kΩ or higher


If the result is not as specified, replace the panoramic view monitor switch.



b.

Check that the illumination.

i.

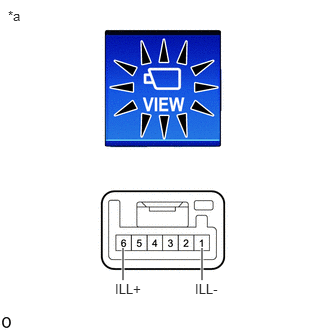

B525437C01
1.281,2.917 1.281,2.583 true 2.104,2.917 2.104,2.583 true 1.198,2.927 1.531,3.094 0.333,0.167 10 false ILL+ 2.031,2.927 2.365,3.094 0.333,0.167 10 false ILL- 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a
*a Component without harness connected
(Panoramic View Monitor Switch)


Apply auxiliary battery voltage to the panoramic view monitor switch and check that the switch illuminates.

OK:
Tester Connection Condition Specified Condition
6 (ILL+) - 1 (ILL-) 6 (ILL+) - Auxiliary Battery positive (+)
1 (ILL-) - Auxiliary Battery negative (-)
Illuminates


If the result is not as specified, replace the panoramic view monitor switch.
