RM38T0EC _56 Audio / Visual / Telematics _111969 PARK ASSIST / MONITORING _0499996 ULTRASONIC SENSOR(for Rear) A

PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Rear)  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)
E463470
1.521,1.958 1.979,1.958 false 1.323,1.833 1.604,2.188 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 ULTRASONIC SENSOR CUSHION SET 89305 (Click here) - -

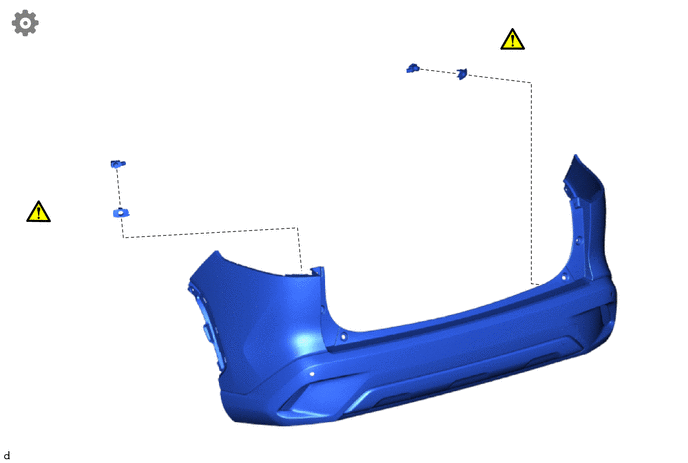

E473618
3.938,0.708 4.26,0.708 false 5.198,0.396 5.042,0.396 5.042,0.396 4.844,0.719 false 0.844,1.708 1.167,1.708 false 0.844,2.219 1.177,2.219 false 1.969,4 2.292,4 false 0.396,0.24 0.719,0.24 false 5.583,0.25 5.865,0.604 0.281,0.354 18 false 2 0.677,2.052 0.958,2.406 0.281,0.354 18 false 2 0.552,2.073 0.781,2.281 0.229,0.208 10 false ● 5.458,0.292 5.688,0.5 0.229,0.208 10 false ● 0.667,1.563 0.948,1.917 0.281,0.354 18 false 3 3.76,0.563 4.042,0.917 0.281,0.354 18 false 3 1.802,3.823 2.083,4.177 0.281,0.354 18 false 4 0.771,0.083 1.052,0.438 0.281,0.354 18 false 5

Part Name Part Name Code
Z101186

Z101188

Z101187

2 REAR CORNER ULTRASONIC SENSOR RETAINER 89C48A (Click here) - -
3 REAR CORNER ULTRASONIC SENSOR 89342 - - -
4 REAR BUMPER ASSEMBLY - - - -
5 PERFORM CALIBRATION - - - (Click here)

● Non-reusable part - -

PROCEDURE

Hide 89305 1.INSTALL ULTRASONIC SENSOR CUSHION SET

Z101186

NOTICE:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.



Hide 89C48A 2.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER

Z101186

NOTICE:

Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.



a.

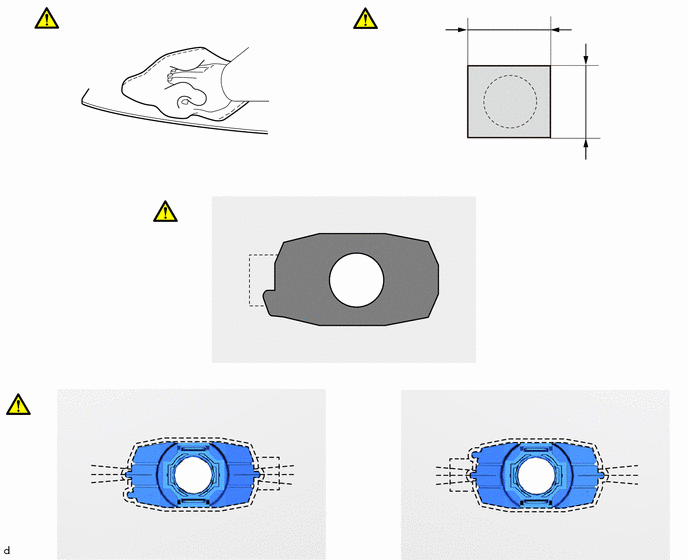

E472083
2.344,4.615 2.604,4.313 true 4.5,3.552 4.229,3.344 true 5.885,4.604 6.146,4.302 true 4.531,3.531 4.719,3.729 0.188,0.198 10 true *b 0.656,0.052 0.927,0.344 0.271,0.292 18 false i 3.979,0.052 4.25,0.344 0.271,0.292 18 false ii 1.885,2.073 2.25,2.427 0.365,0.354 18 false iii 0.365,4.073 0.708,4.458 0.344,0.385 18 false iv 6.219,0.948 6.406,1.146 0.188,0.198 10 false *a 2.635,4.198 2.844,4.406 0.208,0.208 10 true *b 0.729,4.135 0.979,4.344 0.25,0.208 12 true *A 4.26,4.115 4.51,4.323 0.25,0.208 12 true *B 5.198,0.073 5.385,0.271 0.188,0.198 10 false *a 6.167,4.177 6.375,4.385 0.208,0.208 10 true *b
*A for LH Side *B for RH Side
*a 30 mm (1.18 in.) *b Scribed Line
V100144

Primer Application - -


i.

Clean the surface of the rear bumper assembly by the below procedure.

1. Using a heat light, heat the rear bumper assembly.

Heating Temperature:
Item Temperature Item Temperature
Rear Bumper Assembly 40 to 50 °C (104 to 122 °F) - -


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear bumper assembly excessively.


2. Remove any remaining double-sided tape from the rear bumper assembly.

3. Wipe off any adhesive residue with cleaner.

NOTICE:
·

Installing the rear corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Cover the rear corner ultrasonic sensor installation hole from the outside of the rear bumper assembly with a 30 mm (1.18 in.) square piece of tape.


iii.

Apply primer to the rear bumper assembly by the below procedure.

1. Apply primer to rear bumper assembly on the installation area of the rear corner ultrasonic sensor retainer using a brush or felt.

NOTICE:
·

Replace the brush or felt if it is dirty or has become hardened.

·

Keep any painted surface free from primer.

·

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

·

Do not touch surfaces to which primer has been applied until the rear corner ultrasonic sensor retainer has been attached.



2. Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.


Recommended drying time:

10 Minutes or more (at 23°C (73°F))


3. Confirm that the primer has completely dried by touching the rear bumper assembly. Then remove the tape.


iv.

Install a new rear corner ultrasonic sensor retainer by the below procedure.

1. Remove the peeling paper of a new rear corner ultrasonic sensor retainer trying not to touch the adhesional surface.

NOTICE:

After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.


2. Align the rear corner ultrasonic sensor retainer with rear corner ultrasonic sensor with the scribed line on the rear bumper assembly and install it as shown in the illustration.

NOTICE:
·

The application strength of the rear corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

·

Apply pressure so that it does not lift up from the rear bumper assembly.

Pushing force:

50 N (5.0 kgf) for 3 seconds






b.

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


Hide 89342 3.INSTALL REAR CORNER ULTRASONIC SENSOR
