NAVIGATION / MULTI INFO DISPLAY  NAVIGATION ANTENNA  INSPECTION


PROCEDURE

Hide 86860 1.INSPECT NAVIGATION ANTENNA ASSEMBLY

a.

Current consumption check: (GPS)

i.

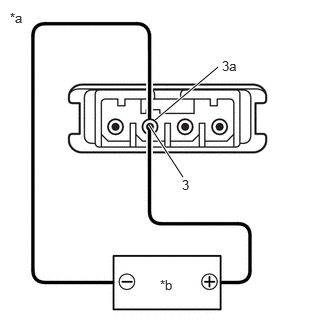

E458228C04
1.615,1.25 2.271,0.698 true 1.552,1.302 1.906,1.844 true 0.104,0.104 0.375,0.323 0.271,0.219 10 false *a 1.667,2.885 1.875,3.063 0.208,0.177 10 false *b 2.313,0.604 2.583,0.823 0.271,0.219 10 false 3a 1.896,1.844 2.167,2.063 0.271,0.219 10 false 3
*a Component without harness connected
(Navigation Antenna Assembly)
*b Voltage Applied between Terminals


Measure the current consumption according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
3 (core) - 3a (shield) 4.2 to 5 V applied between terminals 3 and 3a 10 to 30 mA


NOTICE:

Do not apply 6 V or more between terminals 3 and 3a.


HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.


If the result is not as specified, replace the navigation antenna assembly.



b.

Resistance check: (Telephone Main)

i.
E432252C03
2.896,0.688 2.344,1.156 true 2.281,1.24 2.281,1.833 true 2.24,1.865 2.458,2.052 0.219,0.188 10 false 1 0.073,0.063 0.385,0.26 0.313,0.198 10 false *a 2.938,0.583 3.156,0.781 0.219,0.198 10 false 1a
*a Component without harness connected
(Navigation Antenna Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (core) - 1a (shield) Always 4 to 11 kΩ


If the result is not as specified, replace the navigation antenna assembly.



c.

Resistance check: (Telephone Sub)

i.

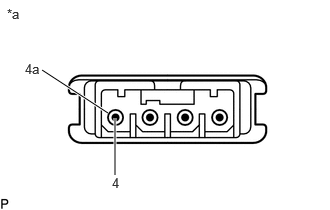

E432252C04
1.125,1.177 0.438,0.729 true 1.198,1.229 1.198,1.823 true 1.167,1.823 1.354,1.979 0.188,0.156 10 false 4 0.073,0.063 0.385,0.26 0.313,0.198 10 false *a 0.26,0.635 0.479,0.833 0.219,0.198 10 false 4a
*a Component without harness connected
(Navigation Antenna Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (core) - 4a (shield) Always 4 to 11 kΩ


If the result is not as specified, replace the navigation antenna assembly.
