RM38T0EC _56 Audio / Visual / Telematics _111966 AUDIO / VIDEO _0499971 NOISE FILTER A

AUDIO / VIDEO  NOISE FILTER  INSTALLATION


CAUTION / NOTICE / HINT

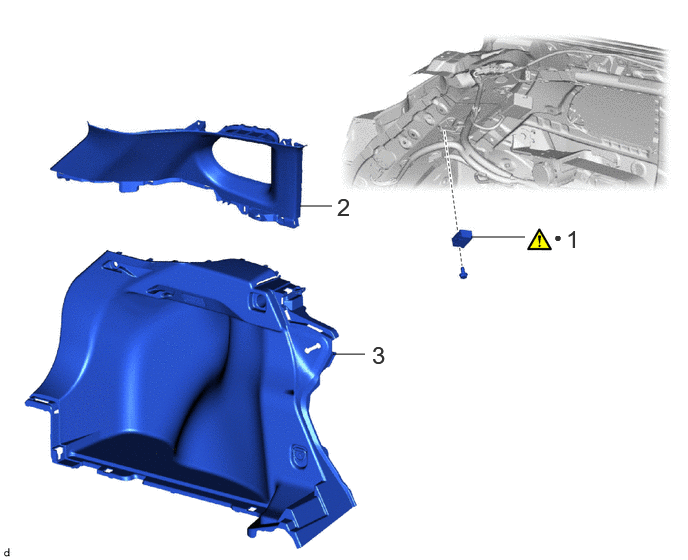

COMPONENTS (INSTALLATION)
E454917N02
3.125,2.146 3.458,2.146 false 4.906,2.469 5.469,2.469 false 3.469,3.688 3.802,3.688 false 3.51,2.01 3.792,2.365 0.281,0.354 18 false 2 5.896,2.344 6.177,2.698 0.281,0.354 18 false 1 5.771,2.385 5.927,2.583 0.156,0.198 10 false ● 3.875,3.552 4.156,3.906 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 RADIO SETTING CONDENSER 86011A (Click here) - -
2 ROOF SIDE INNER GARNISH ASSEMBLY LH 62480A - - -
3 DECK TRIM SIDE PANEL ASSEMBLY LH 64740C - - -

● Non-reusable part - -

PROCEDURE

Hide 86011A 1.INSTALL RADIO SETTING CONDENSER

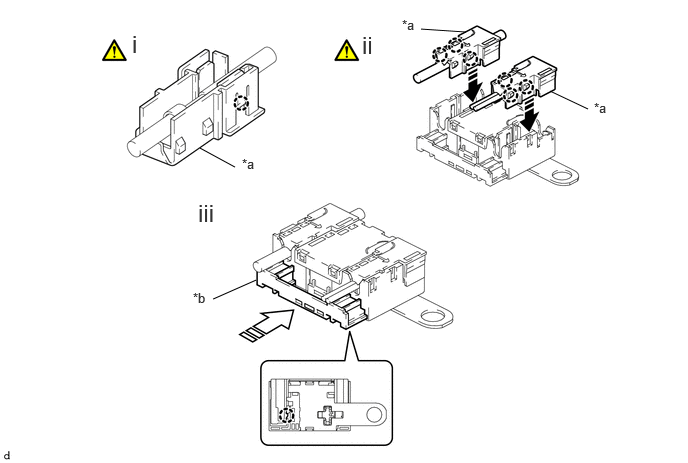

a.
E454919C02
2.083,1.542 2.448,1.74 false 2.219,3.115 2.667,2.917 false 4.385,0.302 4.854,0.333 false 5.729,0.948 6.125,1.135 false 1.375,0.313 1.656,0.667 0.281,0.354 18 false i 3.771,0.323 4.052,0.677 0.281,0.354 18 false ii 2.063,2.073 2.344,2.427 0.281,0.354 18 false iii 2.521,1.625 2.833,1.781 0.313,0.156 10 false *a 2.01,3.021 2.323,3.177 0.313,0.156 10 false *b 4.188,0.177 4.5,0.333 0.313,0.156 10 false *a 6.188,1.042 6.5,1.198 0.313,0.156 10 false *a
*a Terminal Cover *b Cover
V113147

Install in this Direction
V113148

Insert in this Direction


i.

Engage the claw to install a new terminal cover to the wire harness.

NOTICE:
·

Make sure to hold the crimped side of the terminal when installing the wire harness to the terminal cover.

·

Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.

·

Do not use excessive force when inserting the wire harness into the terminal cover.

·

If the terminal cover has been deformed during installation, replace the terminal and terminal cover with new ones.



HINT:

Use the same procedure for the other terminal cover.



ii.

Engage the claws to install the 2 terminal covers with wire harness to a new radio setting condenser as shown in the illustration.

NOTICE:
·

Do not use excessive force when inserting the terminal covers into the condenser.

·

If a terminal cover has been deformed during installation, replace the terminal, terminal covers and condenser with new ones.




iii.

Insert the cover as shown in the illustration and engage the claw.

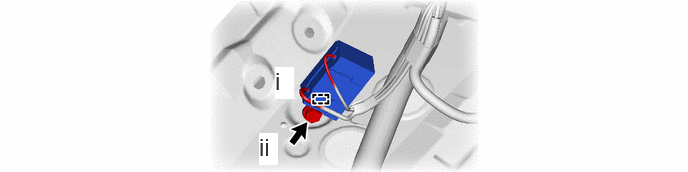

b.
E446124N03
2.698,1.385 2.896,1.719 0.198,0.333 18 true ii 2.865,0.698 3.063,1.031 0.198,0.333 18 true i

i.

Engage the clamp to install the radio setting condenser with wire harness.


ii.

Install the bolt.



Hide 62480A 2.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
