AUDIO / VIDEO  NOISE FILTER  ON-VEHICLE INSPECTION


PROCEDURE

Hide 86011A 1.INSPECT RADIO SETTING CONDENSER

a.

With the radio setting condenser installed, check that there is no looseness or other abnormalities.


b.

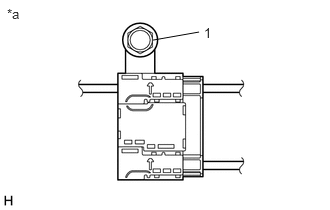

E386542C09
1.594,0.417 2.073,0.333 false 2.125,0.26 2.281,0.458 0.156,0.198 10 false 1 0.073,0.063 0.385,0.219 0.313,0.156 10 false *a
*a Radio Setting Condenser


Measure the resistance of the radio setting condenser according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - Body ground
·

Ignition switch off

·

Window Defogger turned off

·

High mounted stop light off


Below 1 Ω



c.

Remove the bolt.


d.

Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.


e.

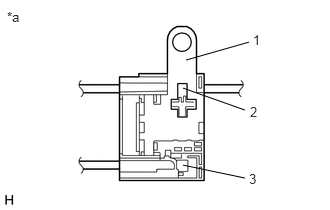

E211797C34
1.938,0.625 2.594,0.438 false 1.906,0.917 2.552,1.146 false 1.906,1.719 2.552,1.854 false 2.635,0.333 2.771,0.531 0.135,0.198 10 false 1 2.604,1.083 2.74,1.281 0.135,0.198 10 false 2 2.594,1.781 2.729,1.979 0.135,0.198 10 false 3 0.073,0.094 0.281,0.292 0.208,0.198 10 false *a
*a Radio Setting Condenser


Measure the resistance and voltage of the radio setting condenser according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2
·

Ignition switch off

·

Window Defogger turned off

·

High mounted stop light off


10 kΩ or higher
1 - 3 10 kΩ or higher


Standard Voltage:
Tester Connection Condition Specified Condition
2 - Body ground
·

Ignition switch ON

·

Window Defogger turned off


Below 1 V
3 - Body ground
·

Ignition switch ON

·

High mounted stop light off


Below 1 V
2 - Body ground
·

Ignition switch ON

·

Window Defogger turned on


11 to 14 V
3 - Body ground
·

Ignition switch ON

·

High mounted stop light on


11 to 14 V
