Audio / Visual / Telematics
_111966
AUDIO / VIDEO
_0499965
REAR DOOR SPEAKER
A
AUDIO / VIDEO REAR DOOR SPEAKER REMOVAL
CAUTION / NOTICE / HINT

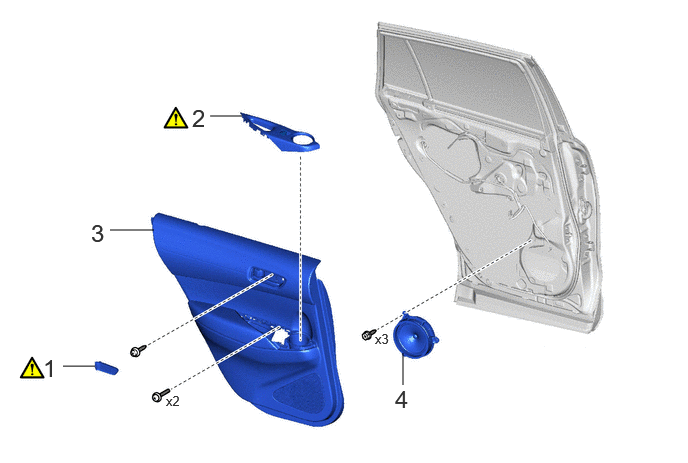

COMPONENTS (REMOVAL)
2.188,1.208 2.521,1.208
false
4.198,3.677 4.198,4.01
false
1.146,2.396 1.604,2.396
false
0.656,3.813 0.99,3.813
false
2,1.083 2.281,1.438
0.281,0.354
18
false
2
0.448,3.688 0.729,4.042
0.281,0.354
18
false
1
4.115,4.01 4.396,4.365
0.281,0.354
18
false
4
0.948,2.281 1.229,2.635
0.281,0.354
18
false
3
1.729,4.094 2.042,4.292
0.313,0.198
10
false
x2
3.906,3.448 4.219,3.646
0.313,0.198
10
false
x3
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR DOOR INSIDE HANDLE BEZEL PLUG | 69284G | ( 202201,999999,_56,_111966,_0499965,RM100000001Z0ZT_01_0051,)
|
- | - |
| 2 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL | - | (202201,999999,_56,_111966,_0499965,RM100000001Z0ZT_01_0052,)
|
- | - |
| 3 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 | - | - | - |
| 4 | REAR SPEAKER ASSEMBLY | 86160B | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
69284G
1.REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
2.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
67604
3.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
86160B

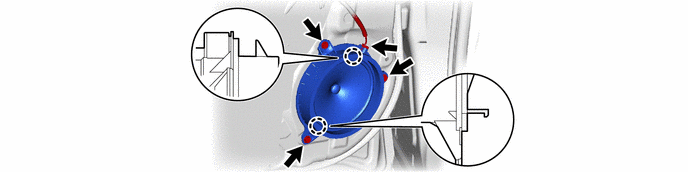

4.REMOVE REAR SPEAKER ASSEMBLY
a.
