RM38T0EC _V1 General _104397 MAINTENANCE _0499962 AIR CONDITIONING FILTER A

MAINTENANCE  AIR CONDITIONING FILTER  INSTALLATION


CAUTION / NOTICE / HINT

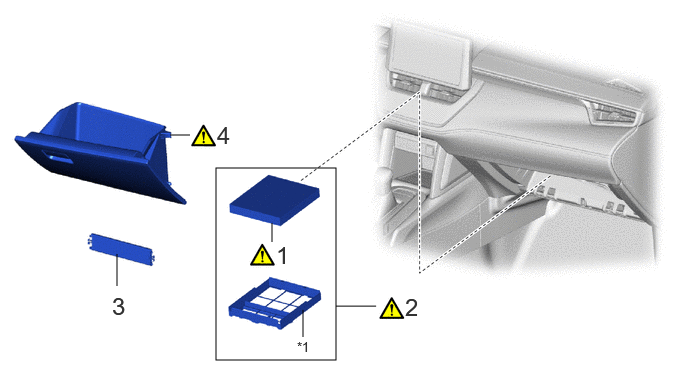

COMPONENTS (INSTALLATION)
I117720N01
2.25,1.75 3.5,3.75 1.25,2 1.219,2.646 1.219,2.979 false 2.833,2.323 2.833,2.521 false 3.156,3.229 3.156,3.51 false 1.771,1.406 1.979,1.406 false 3.5,3.188 3.917,3.188 false 2.26,1.26 2.542,1.615 0.281,0.354 18 false 4 1.167,3.042 1.438,3.333 0.271,0.292 18 false 3 2.875,2.51 3.146,2.802 0.271,0.292 18 false 1 4.219,3.052 4.49,3.344 0.271,0.292 18 false 2 3.094,3.531 3.406,3.729 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CLEAN AIR FILTER 87139C (Click here) - -
2 AIR FILTER CASE WITH CLEAN AIR FILTER - (Click here) - -
3 AIR FILTER COVER PLATE 88899M - - -
4 GLOVE COMPARTMENT DOOR ASSEMBLY 55550 (Click here) - -

*1 AIR FILTER CASE - -

PROCEDURE

Hide 87139C 1.INSTALL CLEAN AIR FILTER

a.

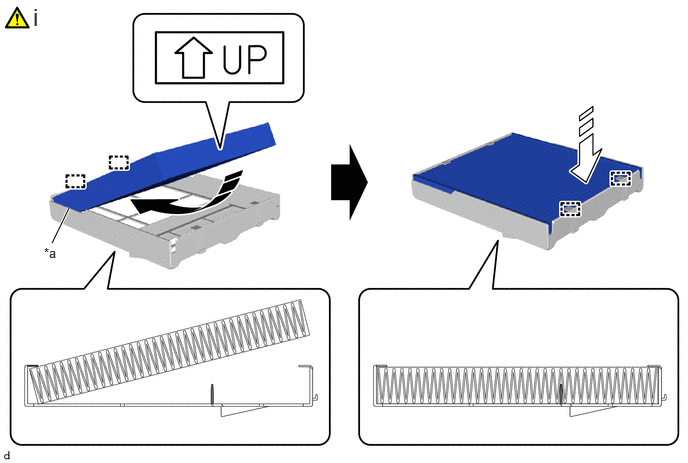

I117722C01
0.542,2.531 0.719,2.167 true 0.344,0.031 0.625,0.385 0.281,0.354 18 false i 0.458,2.552 0.771,2.75 0.313,0.198 10 false *a
*a Cutout - -
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


i.

Engage the guides on the cutout side of the air filter case and then engage the guides as shown in the illustration to install the clean air filter.

NOTICE:
·

Do not apply excessive force to the filter medium, as doing so may damage it.

·

Make sure that the "UP" mark are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.





Hide 2.INSTALL AIR FILTER CASE WITH CLEAN AIR FILTER

a.

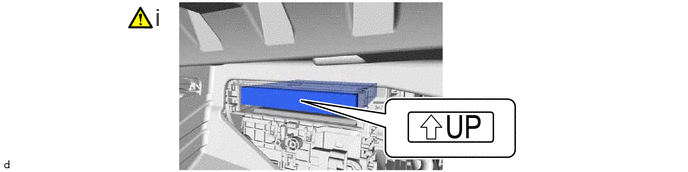

I117721N01
1.615,0.031 1.896,0.385 0.281,0.354 18 false i

i.

Install the air filter case with clean air filter as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter case with clean air filter.




Hide 88899M 3.INSTALL AIR FILTER COVER PLATE
